Fire protection planner of Kaimann & Isover
Calculate the right fire protection system for pipe penetrations through solid walls and ceilings and lightweight partition walls in just a few simple steps with the help of the fire protection planner. Intuitively operated, the application, outer diameter and wall thickness of the pipe as well as other optional criteria can be entered. The planning assistant then shows the available installation options. Once the right option has been selected, you have access to the appropriate construction drawings, test certificates, technical data and other information.
Kaiflex KKplus s2
Product details
Kaiflex KKplus s2
Requirements for limited smoke development are tightening across Europe, with more and more demanding measures to restrict smoke from insulation materials in fires. This requirement was made clear in Germany, for example, by the revision of the model administrative regulation MVV TB to define smoke development class s2 as the minimum requirement for flame-resistant building products. The fire resistance duration of building components (e.g. the lead-throughs of piping systems) also plays a significant role.
As a fully coordinated insulation system consisting of sheet, tube, pipe support and adhesive, Kaiflex KKplus s2 meets stricter building and fire protection requirements as well as thermal requirements for very effective technical insulation. With building material class BL/B-s2, d0 per EN 13501-1, the insulation already meets the requirements in the bid tender standard.
Thanks to our patented KaiCene technology, the panels can remain uncoated and, like the hose material, help reduce smoke development and improve personal safety in the event of fire.
Kaiflex KKplus s2 reliably prevents the formation of condensation and pipe corrosion. The closed cells provide a full water vapour barrier, effectively reducing dampness and so maintaining the material’s high insulation throughout the service life of the insulated system. Due to its technical properties, the insulation thus contributes to a sustained reduction in energy costs.
Benefits
Kaiflex KKplus s2
- Limited smoke emission according to EN 13501-1
- Very high thermal efficiency
- Reliable long-term performance
Kaiflex KKplus s3
Product details
Kaiflex KKplus s3
Efficient and long-term insulation of pipework is of great importance for the energy efficiency and comfort of buildings.
With its very high-level technical attributes, Kaiflex KKplus s3 is the economical alternative for applications requiring the utmost in energy efficiency. This proven closed-cell rubber insulation material has an excellent thermal efficiency of up to λ ≤0.033 (W/m·K) and condensation resistance of up to μ ≥10,000 even at low layer thicknesses, so reliably preventing energy losses and pipe corrosion in the long term.
Kaiflex KKplus s3 is suitable for the technical insulation of refrigeration and air conditioning systems, especially for surfaces and large pipes. The insulation material provides an effective water vapour barrier to ensure reliable insulating performance over the entire operational life of the system.
Kaiflex KKplus s3 sheet material is flexible and easy to work with, and is offered in standard formats from 6 to 32 mm and in thicker versions of e.g. 50 mm, in precut shapes (elbows, strips etc.) and in self-adhesive versions.
Thanks to its antimicrobial and fibre-free structure, the material meets high hygienic requirements and is classified to B-s3, d0, making it especially suitable for insulation in healthcare facilities as well as public, commercial and industrial buildings. For example, it is used in airports, industrial plants, large office complexes and hotels.
Benefits
Kaiflex KKplus s3
- Reliably prevents condensation
- High thermal efficiency
- Reliable long term performance
- In-built anti-microbial resistance
Kaiflex HFplus s2
Product details
Kaiflex HFplus s2
Halogen-free insulation materials are becoming more and more important in technical insulation. Since they are free of PVC, chlorides and brominated flame retardants, they are particularly suited to industrial and specialist applications where toxic combustion gases are a special hazard. This includes their use in maritime, railway, airport and hospital settings.
Kaiflex HFplus s2 insulation materials are uncritically foamed, free of halogens and heavy metals, and meet smoke development class s2. This insulation system thus complies with rigorous European requirements for construction products for fire protection and sustainable building. It meets the required safety standards even in demanding environments.
This halogen-free insulation material is approved for many application areas and special requirements with its international certifications. Since it is free of chloride, Kaiflex HFplus s2 prevents stress corrosion cracking and can be installed with confidence for insulating stainless steel pipes, such as those found in food and pharmaceutical production.
For Green Building certification, sustainability must be addressed in the installation of all fixtures and fittings. This naturally also applies to the insulation of technical building installations. The Kaiflex HFplus s2 insulation system fully meets the declaration criteria for low-pollution building materials. Depending on the configuration, it complies with Green Building standards such as BREEAM, DGNB and LEED, and can be used with confidence in sustainable construction.
With its specific structure, this high-quality rubber material for demanding hygienic applications also offers further health benefits. As a closed-cell insulation material, Kaiflex HFplus s2 generates no harmful particles, whether in ongoing operation or during installation and working with the material.
Benefits
Kaiflex HFplus s2
- Halogen-free (chlorine-, bromine- and PVC-free)
- Reduction of the risk of stress corrosion cracking when used on stainless steel pipes
- Good thermal efficiency
- Reliable long-term performance
Kaiflex ST s2
Product details
Kaiflex ST s2
The requirements for structural fire protection, and in particular the increased focus on personal safety in case of fire, have been increasing internationally for years. More and more, limited smoke development has to correspond to an “s2” smoke development class in accordance with EN 13501-1 as the minimum requirement for flame-retardant building products. Kaimann meets these enhanced requirements and offers increased fire safety with its Kaiflex ST s2: The insulation material made of closed-cell rubber emits limited smoke to s2 standards and is self-extinguishing as well as non-dripping. These properties mean that the insulation material meets the demanding European requirements for combustible building materials such as MVV TB, VKF RF2, Class O (in accordance with UK Building Regulations) and Class 1 (tested in accordance with BS476-7) for surface spread of flame.
With its very high-level technical attributes, Kaiflex ST s2 is an alternative for applications requiring the utmost in energy efficiency. This proven closed-cell rubber insulation material has an excellent thermal efficiency of up to λ ≤0.033 (W/m·K) and condensation resistance of up to μ ≥10,000 even at low layer thicknesses, so reliably preventing energy losses and pipe corrosion in the long term.
Kaiflex ST s2 tubes are available as a standard product or self-adhesive in 2 and 1.2 m lengths.
Whichever variant you choose, it is easy to work with Environmental Product Declarations (EPD) make the ecological assessment of Kaimann insulation materials even more transparent. In this way, the company assists in the planning and certification of sustainable buildings.
Benefits
Kaiflex ST s2
- Reliable safety: Building material class BL-s2, d0
- Meets the demanding international requirements for elastomeric insulation materials
- Reliably prevents condensation and reduces the risk of corrosion under the insulation
- Additional protection against micro-organisms and mold
Kaiflex ST
Product details
Kaiflex ST
Kaiflex ST closed-cell synthetic rubber insulation features universal applicability. It can be used for hot and cold pipes, for any system size and different pipe diameters, in small furnace rooms and in large projects. Thanks to the wide product assortment and the right options like Kaiflex ST tape and Kaiflex RT-ST pipe supports, the material can be used for products of any size without switching material or manufacturer. All this has made Kaiflex ST the Kaimann standard in technical insulation.
Kaiflex ST is used in cooling and air conditioning systems for insulating pipes and ducts in highly frequented public and commercial buildings, like airports, large office complexes, hotels, and apartment buildings, as well as in industrial plants and ships. Thanks to its antimicrobial and fibre-free structure, the material meets high hygienic requirements and is especially suitable for insulation in healthcare facilities like hospitals.
Extensively tested and internationally certified, Kaiflex ST features broad usability and technical characteristics of the highest standard. Thanks to its very low thermal conductivity of up to λ ≤0.033 (W/m·K) at 0 °C and outstanding water vapour diffusion resistance of up to μ ≥10,000, this Kaimann insulation is very energy-efficient and reliably prevents condensation. At Euroclass B-s3, d0 (DIN EN 13501-1), Class O (in acc. with UK building regulations) and Class 1 very low surface spread of flame (test acc. to BS 476-7), this elastomer insulation also meets the highest safety requirements regarding fire behaviour.
The material is available in sheets, as a standard or self-adhesive product. Whichever version is chosen, its flexible installation makes Kaiflex ST a winner.
Environmental Product Declarations (EPD) make the ecological assessment of Kaimann insulation materials even more transparent. In this way, the company assists in the planning and certification of sustainable buildings.
Benefits
Kaiflex ST
- Universal insulation material for busy public and commercial buildings
- Meets the demanding international requirements for elastomeric insulation materials
- Reliably prevents condensation and reduces the risk of corrosion under the insulation
- Additional protection against micro-organisms and mold
Kaiflex HT s2
Product details

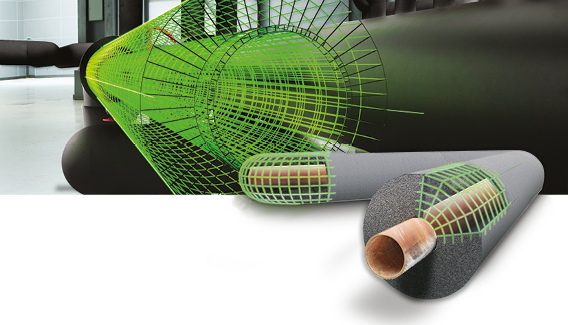

Kaiflex HT s2
Efficient and hygienic insulation for sanitary and heating systems
"The all-purpose insulation material Kaiflex HT s2 not only minimises heat and energy loss, but also provides reliable fire protection. It therefore excels in two equally important areas, making it the ideal choice for developers who value good energy efficiency as well as adherence to high safety standards.
The challenge of energy efficiency
If pipes, valves, flanges or pipe supports are poorly or not continuously insulated, heat loss can be excessively high. In residential buildings or workspaces, this means energy is already lost before the heat even reaches its destination. For this reason, insulation plays a central role in energy efficiency by keeping heat where it belongs. Kaimann is continually improving its Kaiflex products to meet increasing demands for energy savings, without losing sight of important aspects like room climate, dependable product quality, fire safety and ease of application.
High performance and versatility
The result: Kaiflex HT s2, a universally usable insulation for interior drinking water, hot and cold water pipes as well as heating pipes, in residential and commercial buildings. The extensive product range offers solutions for all applications addressed by the German Energy Saving Ordinance (GEG). For example, in Application Area A it can be used with 100% insulating layer thickness in unheated cellars. Thanks to its good heat insulation – constant heat conductivity across all dimensions λ is +40°C ≤0.040 W/(m·K) – Kaiflex HT s2 can significantly reduce the energy costs of a building simply through insulating the accessible pipework. At the same time, the low heat conductivity ensures that the defined temperatures for cold water pipes (DIN 1988-200) and hot water pipes (DIN EN 806-2) are safely maintained, preventing the growth of legionella bacteria. Free from CFC and H-CFC gases as well as fibres, Kaiflex HT s2 also satisfies elevated hygienic requirements and contributes to a positive room climate.
The grey tube material with its closed-cell structure acts as a water vapour barrier, preventing the formation of condensation and thereby reducing the risk of CUI (corrosion under insulation). Thanks to its antimicrobial properties, the insulation needs no additional biocides and provides effective protection against mould and bacteria growth (Eurofin-certified). Furthermore, Kaiflex HT s2 reduces unwanted flow and tap noises of fluids in pipes.
The challenge of fire protection
The requirements for limiting smoke development have become more stringent across Europe. The new German Technical Building Rules (MVV TB) mandate that flame-retardant building products used in construction requiring approval, such as new construction or renovations and changes to existing structures, fulfil the new minimum requirement C/CL-s2, d0. With Kaiflex HT s2, Kaimann offers dependable fire protection. This insulation material in construction material class CL-s2, d0 develops only small amounts of smoke, is self-extinguishing and doesn’t drip off burning, and so in every category meets the requirements of the tightened definition of “flame-retardant” products pursuant to the revised German Technical Building Rules (MVV TB).
Easy installation
Kaiflex HT s2 is offered in three versions for small diameter pipes – endless tube, standard 2 m tube, and self-adhesive 2 m tube. Even in difficult situations, it installs quickly and is easy to work with, which is especially helpful when making special shapes and fittings."
Benefits
Kaiflex HT s2
- Minimises heat and energy loss
- Adheres to high safety standards
- Dependable safety: Euroclass CL-s2, d0
U Protect Pipe Section Alu2
Product details
U Protect Pipe Section Alu2
U Protect pipe solutions provides an easy to install and lightweight efficient solution for thermal and acoustic insulation and fire resistance in HVAC pipe systems, using ULTIMATE mineral wool. ISOVER U Protect pipes provides topclass thermal insulation for hot water and heating pipes and secures the building fire safety for penetrations up to EI 120 according to EN 1366-3. Alufacing provides efficient water vapour barrier when intact and seems carefully taped. U Protect pipe sections are manufactured from inorganic chemically biosoluble materials and do not include anything that would have effect on corrosion and shall not facilitate microbial growth.
Thermal insulation
High class insulation keeps the medium temperature as designed and secures system operating with minimal losses
Fire resistance
Passive fire protection system
Sound insulation
The ability of mineral wool to act as a spring results in reducing vibration and noise emissions in industrial processes
Fast insulation
Thanks to its light weight and high flexibility, it can be installed by one person without any special equipment
Benefits
U Protect Pipe Section Alu2
- Non combustible Euroclass A2L s1-d0
- Melting point: ≥ 1000 °C
- Pipe penetrations sertified for EI 90/120 according to EN1366-3
U Protect Roll 3.1 Alu1
Product details
U Protect Roll 3.1 Alu1
U Protect Roll Alu1 provides topclass thermal insulation for hot water and heating pipes and secures the building fire safety for penetrations up to EI 120 according to EN 1366-3. Rolls are easy to wrap around big diameter pipes and pipe clusters. Alufacing provides efficient water vapour barrier when intact and seems carefully taped. U Protect Rolls are manufactured from inorganic chemically biosoluble materials and do not include anything that would have effect on corrosion and shall not facilitate microbial growth.
Thermal insulation
High class insulation keeps the medium temperature as designed and secures system operating with minimal losses
Fire resistance
Passive fire protection system
Sound insulation
The ability of mineral wool to act as a spring results in reducing vibration and noise emissions in industrial processes
Fast insulation
Thanks to its light weight and high flexibility, it can be installed by one person without any special equipment
Benefits
U Protect Roll 3.1 Alu1
- Non combustible Euroclass A1
- Melting point: ≥ 1000 °C
- Pipe penetrations sertified for EI 90/120 according to EN1366-3
Safe planning of fire protection for pipes and pipe penetrations
As a rule, pipelines must be insulated. Reasons for this include minimizing energy losses and meeting legal requirements. Of course, it makes sense to carry the insulation through walls and ceilings to ensure continuous pipe insulation. In order to additionally ensure a high level of personal safety in the event of a fire, an overall planning concept must also take into account the issues of low smoke development and fire behavior. The specialist planner and specialist insulator, as the decision-maker in the choice of building materials, therefore has a high level of responsibility with regard to the fire protection and energy concept in conjunction with fire protection certificates.
The right solution is what counts
Insulation solutions for fire protection of penetrations are classified according to their fire performance according to EN 13501-1 (reaction to fire) and EN 1366-3 (fire resistance for penetration seals). Among other things, the insulation materials of the two Saint-Gobain subsidiaries ISOVER and Kaimann achieve the best possible building material fire classification classes A2, s1-d0 (non-combustible) for mineral wool and B-s1, d0 (low smoke spread and flame-retardant) for elastomeric insulation materials. The building material classes are composed of the reaction of fire (A2, B etc.), the smoke development in case of fire (s = smoke/smogra, s1, s2, s3) as well as the flaming droplets (d = droplets, d0, d1, d2). In addition, the fire resistance R90 or R120 (DIN 4102) and EI30, EI60, EI90 and E120 (l EN1366-3) is crucial to prevent passage of flames and hot gasses in fire compartments.
Both manufacturers supply comprehensively tested fire protection insulation solutions for combustible and non-combustible pipes as well as pipe penetrations for wall and ceiling openings. Depending on the choice of system (synthetic rubber or fire protection wool/fire protection pipe shells), no product change is necessary in the component penetration and pipe sealing.
Determine the correct insulation constructions for fire protection
The fire protection planner of Kaimann and Isover offers detailed assistance in the planning and application of their fire protection concepts in the field of pipe penetrations. After specifying the thickness of the wall or ceiling, pipe material, pipe outside diameter as well as pipe wall thickness and other options, the user receives the appropriate installation and product variants. After selecting a variant, detailed product information as well as installation drawings, test certificates and tender texts are available for download.
